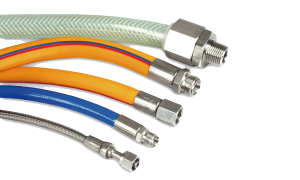

Hose and Tube

Features:

  • The tube wall is constructed to be non-spiral U-shaped and annular corrugated.
  • Tubes have a high degree of flexibility due to high corruga-tions at close intervvals.
  • Tubes come in long lengths without an intermediate joint.
  • Tubes are secured with a stable corrugated structure of uniform width.

    • Features:

  • Extremely durable.
  • Hardness:75A~98A.
  • Working temperature rating:-30°C~+70°C.
  • High flexibility and elasticity.
  • Anti-abrasive and impact-resistant.
  • Oil and non-corrosive chemical resistant.
  • Colors are available in black,blue,orange and yellow.


    • Applications:

    Automated machinery,coating machinery,all kinds of pneumatic tools,pneumatic & hydraulic machinery and construction.

    Features:

  • Extremely durable.
  • Working temperature rating:-30°C~+115°C.
  • Anti-abrasive and impact-resistant.
  • Oil and non-corrosive chemical resistant.
  • Resistance to medium PH4~9.


    • Applications:

    Pneumatic and hydraulic controls and systems,automotive air break lubricant and fuel tubing,CO2 and air tubing,coolant lines, and chemical transfer.

    Features:

  • Good chemical resistance.
  • Excellent dielectric insulation properties.
  • Low coefficient of friction.
  • Anti-adherence.
  • Working temperature rating-73°C~+260°C.
  • Working pressure raring up to 35 bar (500 psig).


    • Applications:

    Semi-conductor industry, medical apparatus, chemical and pharmaceutical industry,heat exchanger,and food industry.

    Features:

  • High weathering and heat resistance.
  • Excellent chemical resistance,anti-acid/alkali,anti-fouling,and anti-stick performance.
  • Working temperature range:-65°C~+260°C.
  • Smooth surface with ultra-resistant.
  • Easy to clean.


    • Applications:

    Air / Stem / Water / Corrosive Fluid.

    Features:

  • Commonly used where chemical compatibility and perme-ation resistance is desired.
  • Single braid layer of 304 ensures hose pressure containment and protects the core from abrasion.
  • Working temperature rating:-60°C~+260°C.
  • Length:available with standard and custom lengths.


    • Applications:

    Pneumatic or hydraulic systems,chemical,steam and water.

    Features:

  • Low temperature resistance.
  • Nonconductive and anti-radiation.
  • Internal high strength polyester fiber reinforcement provides long service life.
  • Core material available with Nylon 6 and Nylon 12.Nylon 12 with low water absorption characteristic.
  • Nylon core material is suitable for petroleum-based and synthetic hydraulic fluids.
  • Working temperature range:-40°C~+90°C.
  • High abrasion-resistance PU cover,available with red,blue and black.


    • Applications:

    Laboratory, recirculating cooling water system and test equipment with limitation in radiation doses.

    Features:

  • Internal high tensile polyester fiber reinforcement enhances hose working pressure rating.
  • Designed for enduring medium to high pressure spraying applications.
  • Resistant against most solvent-based chemicals.
  • Soft and good flexible.
  • Nonconductive,flexible-resistant and anti-abrasive.
  • Its smooth bore reduces flow resistance.
  • 5mm and 8.5mm hoses come with couplings.


    • Applications:

    Spraying chemicals,high pressure air compressors,civil engineering and watering equipments used in washing ships and vehicles.

    Features:

  • Fully annealed 304 or 316L stainless steel tubing.
  • Complying with ASTM A213,A269 or equivalent.
  • With a hardness of 90HRB or less.
  • Tubing without scratches and suitable for flaring and bending.

    • .
