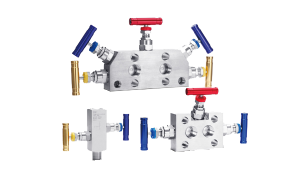

Valve Manifold

Features:

  • Body material in Stainless Steel 316 or 304.
  • Max.working pressure to 6000 psig(413 bar)at 37°C(100°F).
  • TFM1600 packing as standard; Graphite packing for option.
  • Available with Direct-mounting(pipe to flange & flange to flange)or Remote-mounting(pipe to pipe).
  • Manifolds are supplied with Stainless Steel bolts and accessories.
  • 100%factory tested.

    • Functions of the Valve Manifolds:

    2 Valve Manifolds Designed for static pressure and liquid level applications. Consist of one block vavle and bleed valve.
    3 Valve Manifolds Designed for differential pressure applications. Consist of two block valves and one equalizer valve.
    5 Valve Manifolds Designsist for differential pressure applications. Consist of two block valves, two bleed valves and one equalizer valve.

    .
